Located in southwest China, Zigong Tianyi Industrial Co., Ltd. is one of the largest professional suppliers in China of cemented carbide crushing hammer for crusher & carbide stud for high pressure grinding roll (HPGR).
Web: https://zgtianyi.en.alibaba.com/
Homepage: http://www.zigongty.com/
Product Description
HPGR USE CARBIDE STUD

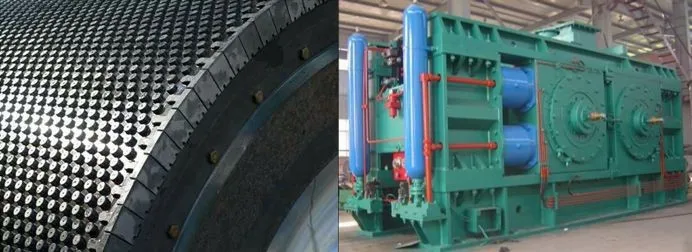

Application: High Pressure Grinding Roll
High pressure grinding roll application highlights
Advantages of the carbide stud for high pressure grinding roll
1. High efficient in crushing
2. Low energy consumption
3. Long service life
4. Easy to replace
5. 100% virgin raw material
6. Advanced production equipment
7. With production experience over 20 years

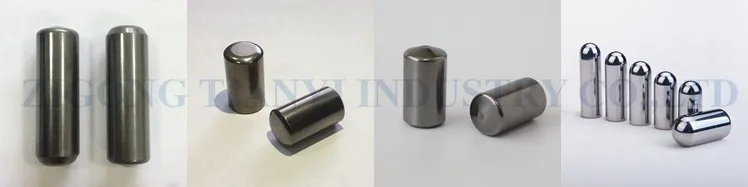

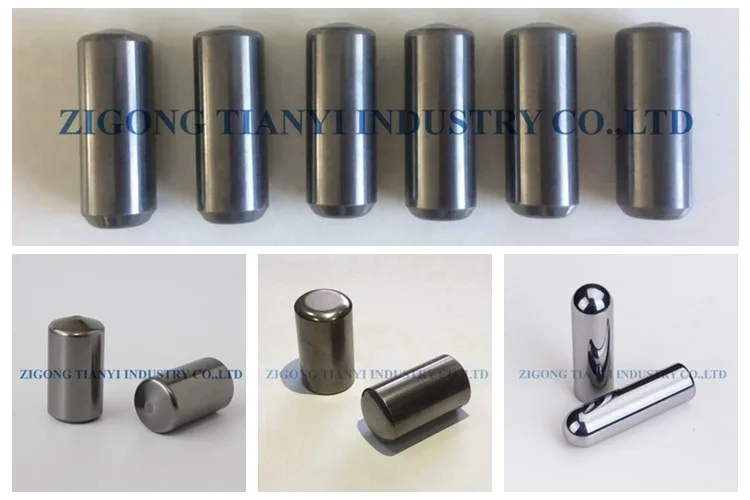

We supply various types of carbide stud and customized product.

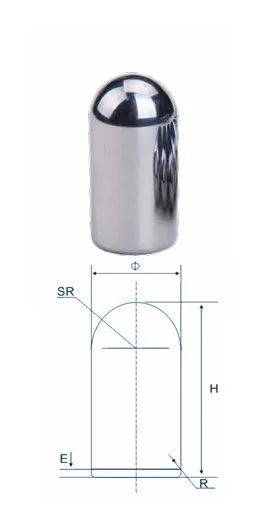

Reference size of HPGR carbide stud(mm)
|
Diameter |
Height |
Dome |
Chamfer |
 |
|
20 |
40 |
SR10 |
2xR5.0 |
|
20 |
35 |
SR10 |
2xR5.0 |
|
20 |
30 |
SR10 |
2xR5.0 |
|
16 |
55 |
SR8 |
R2.0 |
|
16 |
45 |
SR8 |
2xR5.0 |
|
16 |
40 |
SR8 |
1xR2.0 |
|
16 |
35 |
SR8 |
R2.0 |
|
10 |
22 |
SR5 |
R1.0 |
|
10 |
20 |
SR5 |
R1.5 |
Specification of HPGR carbide stud
|
Grade
|
Physical Properties
|
Chemical Composition (%) |
|
Density
(g/cm3)
|
Coercivity
(kA/m)
|
Hardness
(HRA)
|
Bending Strength
(>=N/mm2)
|
Cobalt |
Carbon |
Iron<= |
|
ZD35.2
|
14.02~14.50
|
6.6~9.0
|
87.5~89.0
|
2800
|
11.2~11.6 |
----- |
----- |
|
ZD45
|
13.85~14.00
|
6.0~9.0
|
86.0~87.0
|
2950
|
15.8~16.2 |
----- |
----- |
|
ZD45.1
|
13.95~14.15
|
8.0~11.5
|
87.8~89.0
|
2950
|
14.5~14.9 |
----- |
----- |
|
ZD45.2
|
13.85~14.10
|
5.0~8.5
|
86.0~87.2
|
3000
|
15.1~15.5 |
----- |
----- |
|
ZD45.3
|
13.85~14.20
|
5.0~8.0
|
85.5~87.0
|
2600
|
14.8~15.2 |
----- |
----- |
|
YG7
|
14.75~14.95
|
13.0~17.0
|
90.3~92.3
|
1900
|
6.7~7.2 |
5.8~5.55 |
0.05 |
|
YG8
|
14.62~14.82
|
10.0~15.5
|
89.5~91.0
|
1800
|
7.7~8.2 |
5.30~5.95 |
0.05~0.08 |
|
YG8C
|
14.60~14.80
|
6.3~9.3
|
87.5~89.0
|
2000
|
8.0~8.5 |
5.35~5.90 |
0.06~0.10 |
|
YG10C
|
14.35~14.55
|
5.8~9.3
|
87.0~88.5
|
2150
|
10.0~10.5 |
5.20~5.75 |
0.05~0.10 |
|
YG15
|
13.95~14.15
|
7.0~10.0
|
87.0~88.5
|
2300 |
14.1~14.8 |
4.95~5.60 |
0.05 |
|
YG15C |
13.90~14.10 |
4.5~6.5 |
85.0~86.5 |
2300 |
14.7~15.3 |
4.90~5.50 |
0.05~0.10 |
|
YG20 |
13.40~13.60 |
8.0~11.0 |
86.0~87.5 |
2450 |
19.7~20.4 |
4.50~4.80 |
0.05 |
