  • Products: CARBIDE STUD FOR HPGR
  • NO.: a011
  • Time on shelves: 2016-03-29
  • Views : 662

Zigong Tianyi Industrial Co., LtdQQ20150817102406.png

Located in southwest China, Zigong Tianyi Industrial Co., Ltd. is one of the largest professional suppliers in China of cemented carbide crushing hammer for crusher & carbide stud for HPGR. We supply cemented carbide wear parts series as well as provide complete solution to meet customer's requirements due to we have a professional team in research & design.With decades of sales & marketing and relevant application experience,our products enjoy high reputation both at home and abroad.







Product Description

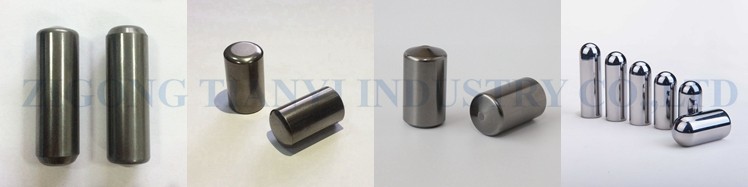

 Carbide stud for HPGR

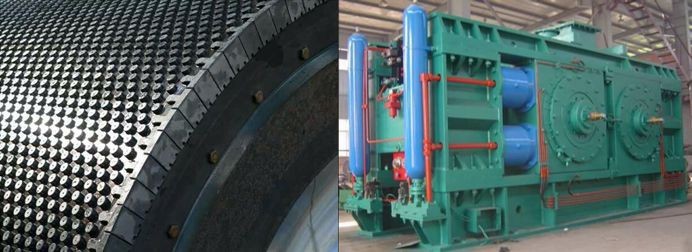

Application:   High Pressure Grinding Roll

CARBIDE STUD FOR HPGR



Advantages of the carbide stud for HPGR

1. High efficient in crushing

2. Low energy consumption

3. Long service life

4. Easy to replace

5. 100% virgin raw material

6. Advanced production equipment

7. With production experience over 20 years



We supply various types of stud and customized product.

 CARBIDE STUD FOR HPGR



Reference size of carbide stud for HPGR(mm)

Diameter Height Dome Chamfer CARBIDE STUD FOR HPGR
20 40 SR10 2xR5.0
20 35 SR10 2xR5.0
20 30 SR10 2xR5.0
16 55 SR8 R2.0
16 45 SR8 2xR5.0
16 40 SR8 1xR2.0
16 35 SR8 R2.0
10 22 SR5 R1.0
10 20 SR5 R1.5



Specification of carbide stud for HPGR

Grade

 Physical Properties

Chemical Composition (%)

Density

(g/cm3)

Coercivity

(kA/m)

Hardness

(HRA)

Bending Strength

(>=N/mm2)

Cobalt Carbon Iron<=

ZD35.2

14.02~14.50

6.6~9.0

87.5~89.0

2800

 11.2~11.6  -----   -----

ZD45

13.85~14.00

6.0~9.0

86.0~87.0

2950

 15.8~16.2 ----- -----

ZD45.1

13.95~14.15

8.0~11.5

87.8~89.0

2950

 14.5~14.9  -----  -----

ZD45.2

13.85~14.10

5.0~8.5

86.0~87.2

3000

 15.1~15.5  -----  -----

ZD45.3

13.85~14.20

5.0~8.0

85.5~87.0

2600

 14.8~15.2 ----- -----

YG7

14.75~14.95

13.0~17.0

90.3~92.3

1900

 6.7~7.2 5.8~5.55   0.05

YG8

14.62~14.82

10.0~15.5

89.5~91.0

1800

 7.7~8.2  5.30~5.95 0.05~0.08

YG8C

14.60~14.80

6.3~9.3

87.5~89.0

2000

 8.0~8.5  5.35~5.90  0.06~0.10

YG10C

14.35~14.55

5.8~9.3

87.0~88.5

2150

 10.0~10.5  5.20~5.75 0.05~0.10

YG15

13.95~14.15

7.0~10.0

87.0~88.5

 2300 14.1~14.8   4.95~5.60 0.05
YG15C 13.90~14.10   4.5~6.5  85.0~86.5  2300  14.7~15.3  4.90~5.50 0.05~0.10
YG20  13.40~13.60  8.0~11.0  86.0~87.5  2450  19.7~20.4  4.50~4.80 0.05



CARBIDE STUD FOR HPGR

CARBIDE STUD FOR HPGR



Related Products

 CARBIDE STUD FOR HPGR  CARBIDE STUD FOR HPGR  CARBIDE STUD FOR HPGR

CARBIDE STUD FOR HPGR     CARBIDE STUD FOR HPGR



Packaging & Shipping
Packaging in cartons, in wooden boxes, or customized
Delivery by vessel, by plane
