  • Products: ROTOR TIP FOR VSI CRUSHER
  • NO.: b005
  • Time on shelves: 2016-07-05
  • Views : 369



Product Description

Advantage of rotor tip for VSI crusher:

1. Perfect performance

2. Stable quality

3. 100% virgin raw material

4. Standard or customized

5. Fast delivery

Application:

Crusher hammer tungsten carbide bar are equipped with tungsten carbide that protects the rotor of the VSI crusher against wear, mainly used for break stone or into sand, they are widely used in the field of cement, mining etc.

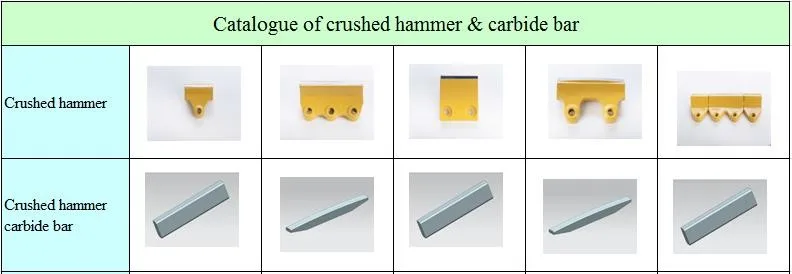

Reference sizes

Rotor tip for VSI crusher

Length of the hammer(mm) 103 196 135 189 320
Carbide tip size(mm)

52.5*19*10

52.5*23*13

52.5*23*14

196*23*15 135*23*13

189*23*13

189*27*13

189*27*15

80*23*13

160*23*13

106*32*14

212*32*14

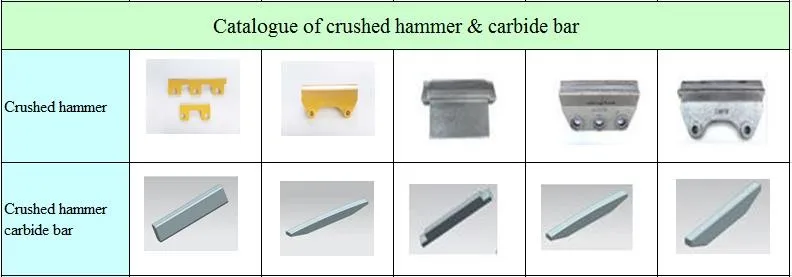

Rotor tip for VSI crusher

Length of the hammer(mm)

192

142

92

220 210 189 189
Carbide tip size(mm)

192*10*8

192*13*8

142*10*8

142*13*8

220*27*13

220*27*15

210*25*15*10

218*23*18*8.5

189*27*13 189*27*13



Reference Grade of  Carbide Tip

Grade Properties Application
Density(g/cm3)

Toughness(HRA)

TRS(n/mm2)
ZT1 14.90-15.10 91.1 2400 excellent wear resistance & hardness for crushing granite, quartz porphyry, siliceous rock, iron ore.etc.
ZT2 14.70-14.85 90.0 2700 excellent wear resistance & hardness for crushing limestone, sand stone, areaceous shale, lean iron ore, cupriferous pyrite, etc.
ZT3 14.60-14.80 89.5 2500 excellent wear resistance and hardness for crushing granite, amphibolite, siliceous rock, cupriferous pyrite, marble, sandstone, gray stone etc.
ZT4 14.60-14.80 88.5 2300 general wear resistance and hardness for crushing metasandstone, quartz porphyry, granite, ordinary limestone, granite in strip mine, dolomite, magnetic iron ore etc.
ZT5 14.20-14.40 87.0 2800 high hardness and a bit low wear resistance for crushing sandstone, hard rock, quartz rock, dolomite, iron ore, dorite, granite, sandstone etc.
ZT6 14.00-14.60 85 1900 crushing soft shale, limestone, coal, harden clay etc.
